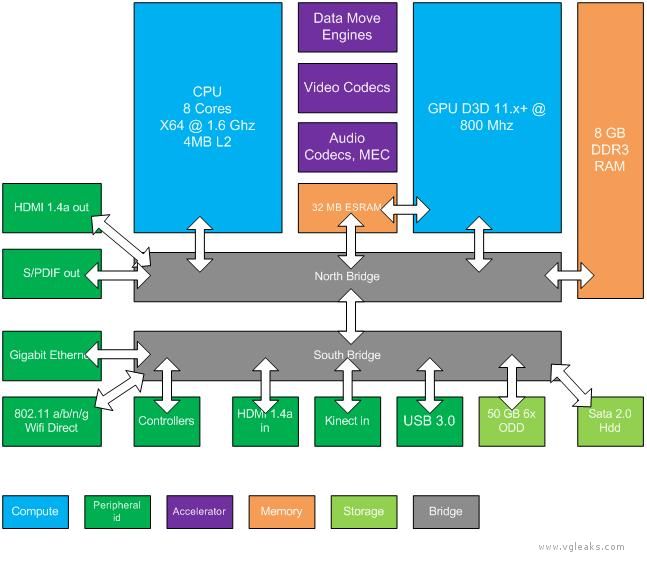

Technische Daten Durango - Xbox 720? (unbestätigt)

- x64 Architecture

- 8 CPU cores running at 1.6 gigahertz (GHz)

- each CPU thread has its own 32 KB L1 instruction cache and 32 KB L1 data cache

- each module of four CPU cores has a 2 MB L2 cache resulting in a total of 4 MB of L2 cache

- each core has one fully independent hardware thread with no shared execution resources

- each hardware thread can issue two instructions per clock


- custom D3D11.1 class 800-MHz graphics processor

- 12 shader cores providing a total of 768 threads

- each thread can perform one scalar multiplication and addition operation (MADD) per clock cycle

- at peak performance, the GPU can effectively issue 1.2 trillion floating-point operations per second

High-fidelity Natural User Interface (NUI) sensor is always present

Storage and Memory:

- 8 gigabyte (GB) of RAM DDR3 (68 GB/s)

- 32 MB of fast embedded SRAM (ESRAM) (102 GB/s)

- from the GPU’s perspective the bandwidths of system memory and ESRAM are parallel providing combined peak bandwidth of 170 GB/sec.

- Hard drive is always present

- 50 GB 6x Blu-ray Disc drive


- Gigabit Ethernet

- Wi-Fi and Wi-Fi Direct

Hardware Accelerators:

- Move engines

- Image, video, and audio codecs

- Kinect multichannel echo cancellation (MEC) hardware

- Cryptography engines for encryption and decryption, and hashing

Bilder: VGLeaks
